Aviro Z2

Professional mid-range multi-purpose drone with vertical take-off and landing (VTOL), combining the best of both worlds of multi-rotor and fixed-wing drones.

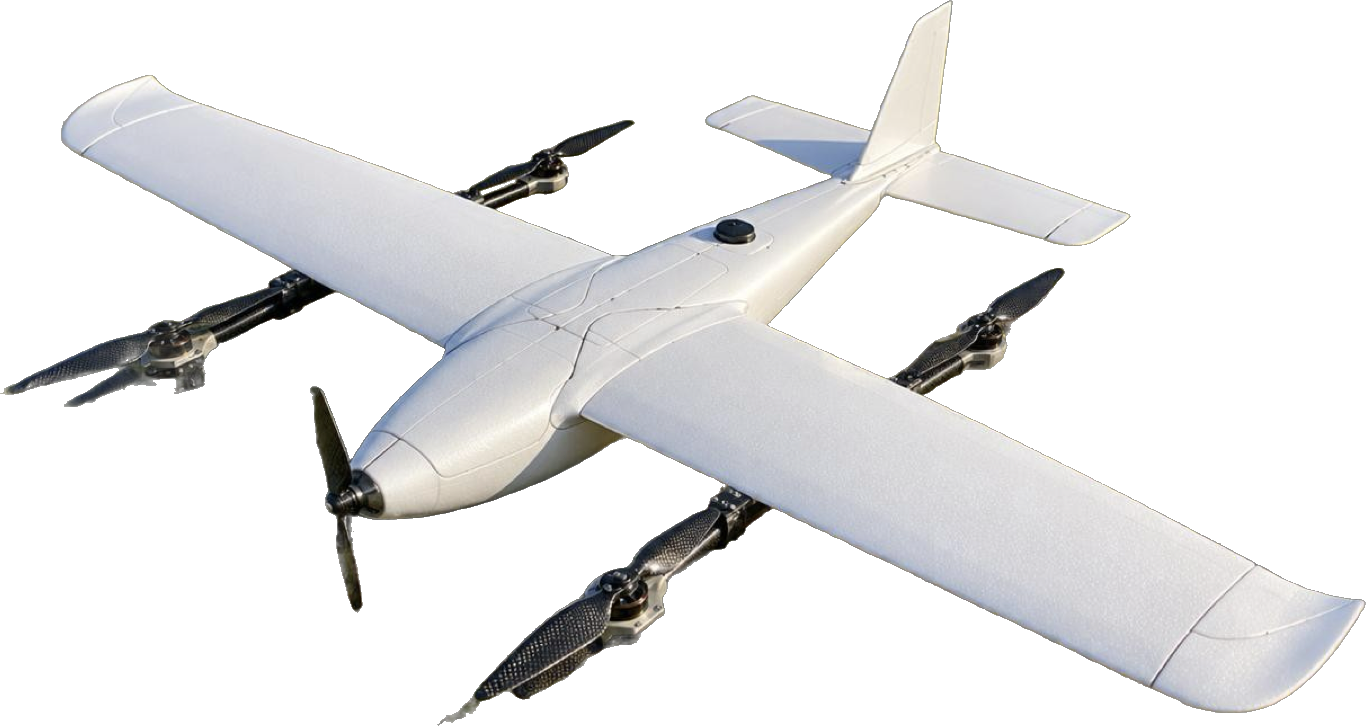

AVIRO Z2
Professional mid-range multi-purpose drone

Combining the vertical take-off and landing of multi-rotor drones with the range of fixed-wing drones.

VTOL deployment in confined locations

Quick deployment with just 5 square metres of open area for take-off and landing.

Extended fixed-wing coverage

Designed for extended coverage versus multirotor-only platforms, travelling up to 150km per flight.

Survey-grade accuracy without GCP

With PPK capability, Aviro Z2 achieves centimeter accuracy without the need for Ground Control Points.

Durable, lightweight design

Light-weight carbon composite or EPO-combined body ensures mobility in the field under harsh conditions.

Mission flexibility

Modular payload and battery integration by configuration, with up to 120 minutes of flight time.

Payload options

Sony Alpha a6700 with lens
Sony Alpha a6700 with lens

Sony Alpha a6700 features a 24 megapixels sensor with 4K video capture for high-resolution mapping.

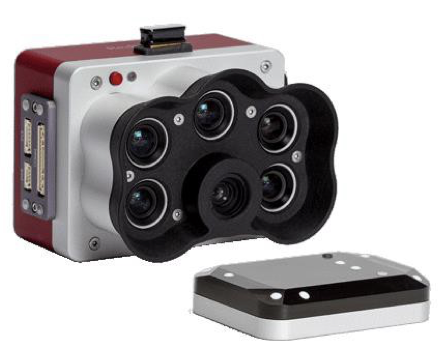

MicaSense RedEdge-P
MicaSense RedEdge-P

MicaSense RedEdge-P offers 5 bands plus panchromatic and a 2K visible light camera for plant health index analysis.

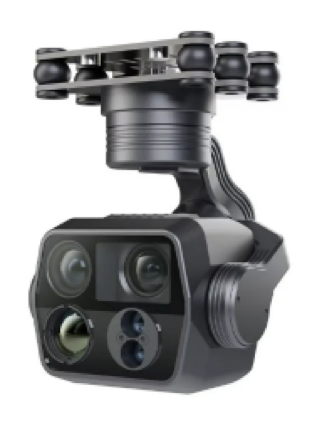

Thermal camera, zoom, and laser range finder
Thermal camera, zoom, and laser range finder

640x512 thermal camera, 3-axis gimbal, 100X hybrid digital zoom, and 1.2km laser range finder.

Technical specifications

Wingspan / length2.10m / 1.2m
Maximum weight (MTOW)7.1kg
Maximum payloadUp to 1kg*
Maximum flying timeUp to 120 minutes*
Flying speed18 - 21m/s
Flight altitudeUp to 2500m
Flight control rangeUp to 30km
Distance travelUp to 150km
Take off/ Landing modeVertical take off & landing (VTOL)
Wind resistance (take off/landing)Up to 7m/s
Wind resistance (cruising)Up to 15m/s
Frame materialCarbon fiber / EPO-mix
Battery typeSingle battery for cruise + VTOL
Payload typesRGB, multispectral, thermal, HD video
PPK/RTK moduleAvailable as option
Operating temperatureUp to 50℃

* Maximum payload and endurance depend on configuration and require flight testing.
