Aviro D20

Aviro D20, the first gimbaled sprayer drone, delivers per-tree precision dosing to cut chemical waste and accelerate pest control for consistent, superior results.

AVIRO D20
Tree-to-Tree Precision Spraying

6-rotor gimbaled sprayer ensures accurate spear-to-spear application with minimal chemical waste.

Efficient Coverage

20L tank and extended 60 cm retractable hose cover up to 120 trees per flight in just 8–12 minutes.

Smart Flight Control

Waypoint missions with dedicated GCS, Auto RTH, and resume function streamline operations.

High-Performance Spraying

Single 4L/min brushless pump with jet or cone nozzles delivers droplets sized 80–200 μm at 2–4 m height.

Night & All-Weather Ready

FPV with night mode, built-in LED lights, and optional obstacle avoidance for safe spraying anytime.

RTK Precision Navigation

Integrated RTK support provides centimeter-level accuracy for consistent, reliable spraying routes.

Performance & Specifications

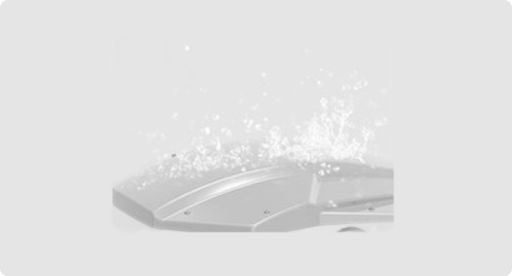

Waterproof
Waterproof

Durable waterproof design ensures reliable operation and protection of key components in challenging field conditions.

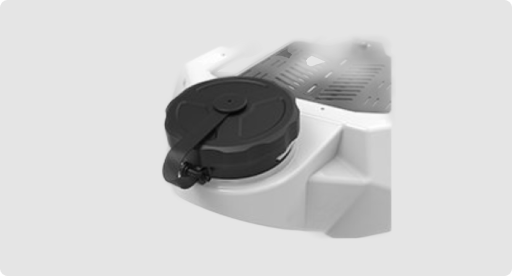

Large Tank Inklet
Large Tank Inklet

Wide opening for quick refills and easy maintenance, minimizing downtime and improving spraying efficiency.

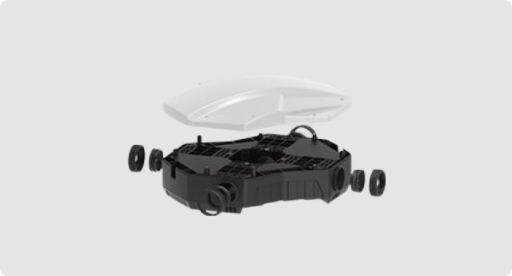

Gimbal-based Nozzle
Gimbal-based Nozzle

Stabilized gimbal-mounted nozzle delivers consistent droplet size and accurate tree-to-tree spraying coverage.

Technical specifications

Number of rotors6
Spraying speed3 to 10 m/s
Diameter (unfolded)2350 mm
Spraying height2 to 4 meter above crop
Height750 mm
Spraying patternTree to tree (spear to spear)
Tank volume20L liquid
Battery quantity1 x 22000 mAh 14S smart battery
Area efficiency per flightup to 120 trees
Auto RTH and resumeMagnetic impeller pump
Effective working time8-12 minutes
FPV with night modeSupported, with build-in LED lights
Maximum flight speedup to 10 m/s
Pump quantitySingle 4L/min brushless DC pump
Nozzle spraying typeJet or Cone
Flight modeWaypoints with special GCS
Droplets size80 to 200 µm
Obstacle avoidanceAvailable as add-on option
Hose typeExtended hose (60 cm), retractable
RTK supportAvailable by default
